GMF200-B 4-20mA OCT Relay DN15-DN6000mm pipe size Wall-mounted external clip type ultrasonic flowmeter

Xi'an Huance Automation Technology Co., Ltd.
Contact Now

GMF200-B 4-20mA OCT Relay DN15-DN6000mm pipe size Wall-mounted external clip type ultrasonic flowmeter

  • 1
  • 2
  • 3

Brand Name : HCATM

Model Number : GMF200-B

Certification : CE,RoHs

Place of Origin : Xi'an

MOQ : 1

Price : 60-200USD/pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 pieces per month

Delivery Time : 3-5 days

Packaging Details : Packed in cardboard or wooden boxes

Principe : Ultrasonic

Accuracy : ±1%

Display : LCD

Output : 4-20mA;OCT;Relay

Data storage : SD card

Pipe inner diameter : 15~6000mm

Temperature : -30~160℃

Flow velocity : 0~±10m/s

Input : 3 way 4-20mA

Protocol : RS485

Power : DC8~36V;AC85~264V

Contact Now

GMF200-B Wall-mounted external clip type ultrasonic flowmeter

GMF200-B 4-20mA OCT Relay DN15-DN6000mm pipe size Wall-mounted external clip type ultrasonic flowmeter

Product Description

Product overview

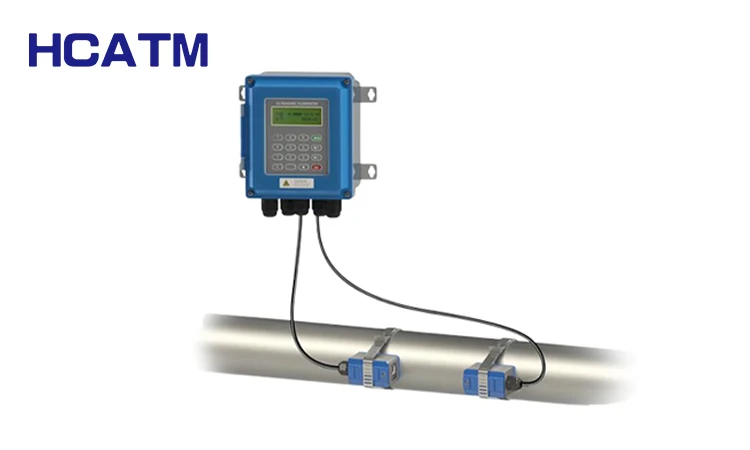

The external clip type ultrasonic flowmeter is composed of the main body and an external clip-type sensor. Simply attach the clip-on sensor to the surface of the pipe to complete the flow measurement of various liquids. Compared with the traditional flow meter, it does not need to cut off the tube, and the installation is quick and convenient, realizing the non-destructive installation.

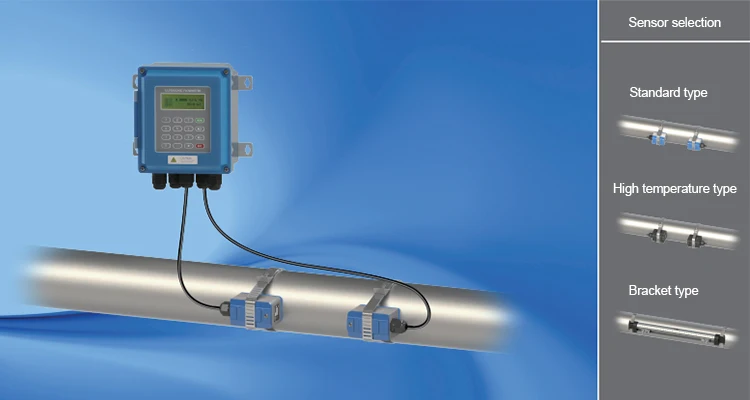

The main unit can be installed in the wall, instrument box, and distribution box, and the protection level can reach IP67. The external clip-type sensor is installed on the surface of the pipe, and different sensors are selected. The applicable diameter is DN15~DN6000.

Technical parameters

Working environment

Host Sensor
Protection level IP67 IP68
Humidity ≤85%RH
Temperature -20℃-60℃ -30℃-160℃

Basic parameters

Accuracy ±1%
Flow velocity 0~±10m/s
Pipe diameter DN15-DN6000
Fluid temperature -30℃-160℃
Fluid type Water, seawater, industrial sewage, acid and alkali, alcohol, beer, various oils, and other single homogeneous liquids that can conduct ultrasonic waves.
Pipe material All dense pipes such as steel, stainless steel, cast iron, steel, PVC, aluminum, and glass-reinforced plastic are allowed to be lined.
Signal output

1 channel 4-20mA current output, impedance 0-1K, accuracy 0.1% (optional)

1 channel OCT pulse output (pulse width 6-1000ms, default 200ms)

1 channel Relay output

Signal input

3 channel 4-20mA current input,

A three-wire PT100 platinum resistor can be connected to thermal measurement.

Communication Interface Isolated RS485 serial interface, support MODBUS protocol
Data storage SD card timing storage setting parameters and measurement results (optional)
Power supply DC8~36V or AC85~264V

Product details

GMF200-B 4-20mA OCT Relay DN15-DN6000mm pipe size Wall-mounted external clip type ultrasonic flowmeter

GMF200-B 4-20mA OCT Relay DN15-DN6000mm pipe size Wall-mounted external clip type ultrasonic flowmeterGMF200-B 4-20mA OCT Relay DN15-DN6000mm pipe size Wall-mounted external clip type ultrasonic flowmeterGMF200-B 4-20mA OCT Relay DN15-DN6000mm pipe size Wall-mounted external clip type ultrasonic flowmeter

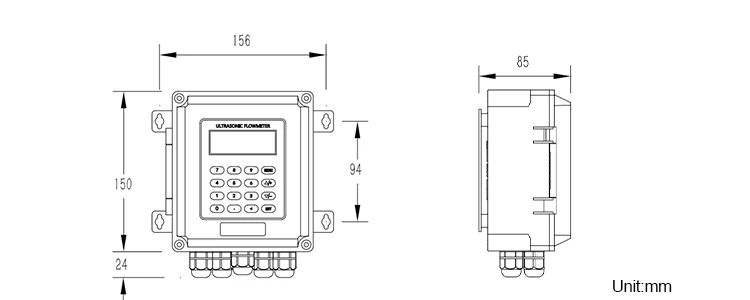

Dimensions

GMF200-B 4-20mA OCT Relay DN15-DN6000mm pipe size Wall-mounted external clip type ultrasonic flowmeter
